Description
nebenjob tarp Pull Tarp System UT 1809414 | Donovan TarpsMODELS: Donovan 1809414, 1809905 Part # Kit Name Box Width Features 1809414 UT Tarp System 86" to 104" w Crank Locking Sprocket 1809905 UT Tarp System w Mounting Plates 86" to 104" w Crank Locking Sprocket and Mounting Plates The UT Tarp System from Donovan is a pull style system and a perfect choice for landscapers and other light duty body operators with bodies up to 23 ft in length; this system packs neatly in a UPS shippable box with no over
MODELS: Donovan 1809414, 1809905
| Part # | Kit Name | Box Width | Features |
| 1809414 | UT Tarp System™ | 86" to 104" | w/Crank-Locking Sprocket |
| 1809905 | UT Tarp System™ w/ Mounting Plates | 86" to 104" | w/Crank-Locking Sprocket and Mounting Plates |
The UT Tarp System™ from Donovan is a pull-style system and a perfect choice for landscapers and other light-duty body operators with bodies up to 23 ft in length; this system packs neatly in a UPS-shippable box with no over-length charges to deal with and installs quickly and easily. At install, the overall width of the system can be set from 86 to 104 inches right out of the box. The roll tube can be easily shortened to accommodate narrower bodies, if needed. Right off the shelf, the UT Tarp System™ kit bolts or welds directly to the bearing plates incorporated into most trailers and truck bodies. The UT Tarp System™ offers simple, secure operation and can be paired with any Donovan stock tarp materials.

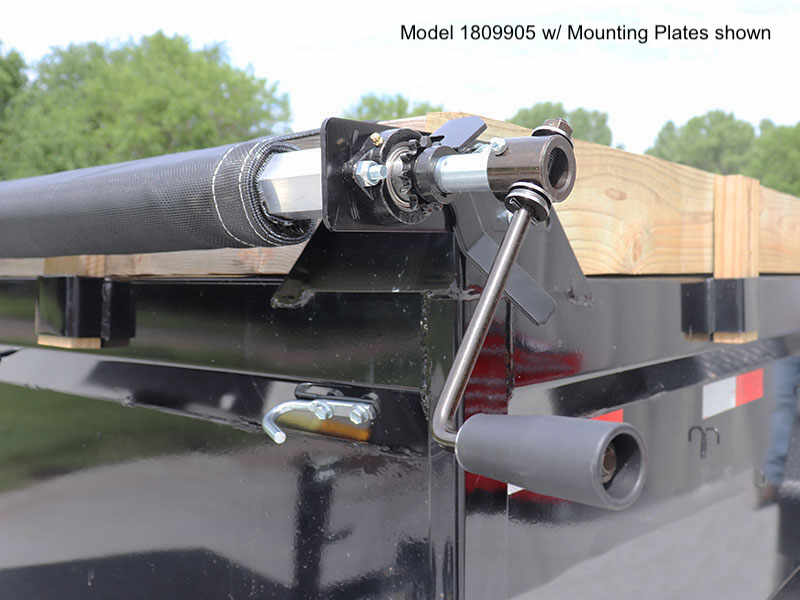

The UT Tarp System™ ships with a pre-assembled crank handle. For bodies without a built in tarp system, the UT Tarp System™ with Mounting Plates kit (P/N 1809905) includes the mounting plates and fasteners you'll need to quickly and easily mount your new UT Tarp System.
To cover, pull tarp to back of body and tie off pull rope to brackets (provided). Locking-sprocket crank secures tarp. To uncover, untie pull rope and uncover using crank handle. One-piece and three-piece pull bar assemblies are available as options.
** The UT Tarp System does not come with a tarp unless you select to add one.**
View Installation Instructions
Standard Features:
- "Tarp-Locking" Crank Handle
- Molded HDPE End Caps
- 3-Piece Adjustable Width Aluminum Roller Bar
- Heavy-Duty Bearings
- Adjustable Width from 86" to 104"
Available Options:
-
Three Piece pull bar Kit w/ Hardware (Part #: 1809829)
-
Mounting Plate Kit w/ Hardware: for trailers and bodies that do not have pre-fabricated mounting holes for tarp system (Part #: 1809784)
